In the world of automotive engineering, piston compression height is a crucial factor when designing and building performance engines. It directly impacts the overall performance and efficiency of the engine.
In this post, we introduce our easy-to-use Compression Height Calculator, which allows you to quickly compute the compression height of a piston. We will also go through the formula behind the calculator and provide a step-by-step example using different numbers.
Understanding Compression Height
Compression height refers to the distance between the center of the wrist pin and the crown of a piston. This measurement plays a vital role in achieving the desired quench in performance engines.
Quench is the distance between the piston’s flat top and the cylinder head’s flat surface when the piston is at the top dead center (TDC). The correct quench height helps prevent detonation, improves combustion efficiency, and contributes to overall engine performance.
Compression Height Formula
What is the formula for compression height? The formula used to calculate the compression height (CH) is as follows:
CH = BH – 0.5 * CS – RL – DC
Where:
- CH represents the compression height
- BH is the block height
- CS is the crank stroke
- RL is the rod length
- DC is the deck clearance
Example: Calculating Compression Height
For this example, we will use the following dimensions:
- Block height (BH): 8 inches
- Crank stroke (CS): 3.5 inches
- Rod length (RL): 2 inches
- Deck clearance (DC): 1.5 inches
Using the formula above, we can calculate the compression height:
CH = BH – 0.5 * CS – RL – DC
CH = 8 – 0.5 * 3.5 – 2 – 1.5 CH = 8 – 1.75 – 2 – 1.5
CH = 2.75 inches
In this example, the compression height is 2.75 inches.

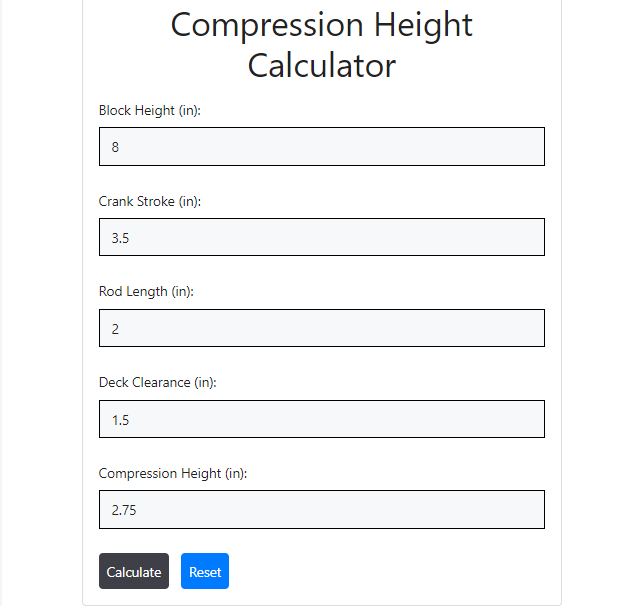

Introducing the Compression Height Calculator
Our Compression Height Calculator makes it simple to calculate the compression height by inputting the required values. The calculator takes care of the evaluation and displays the compression height for you. Here’s how to use it:
- Enter the block height (in inches) in the “Block Height” field.
- Enter the crank stroke (in inches) in the “Crank Stroke” field.
- Enter the rod length (in inches) in the “Rod Length” field.
- Enter the deck clearance (in inches) in the “Deck Clearance” field.
- Click on the “Calculate” button to compute the compression height.
You can also use the “Reset” button to clear the fields and input new values for a different calculation.
Whether you’re an automotive enthusiast or a professional engine builder, our Compression Height Calculator is a valuable tool to quickly and accurately calculate the piston compression height. It can help optimize your engine design and improve its performance. Give it a try and let us know your thoughts in the comments below!
